SPECIFICATIONS

Brand Name: DEKO

Hign-concerned Chemical: None

Certification: none

Model Number: DKUS02-MMA-160A

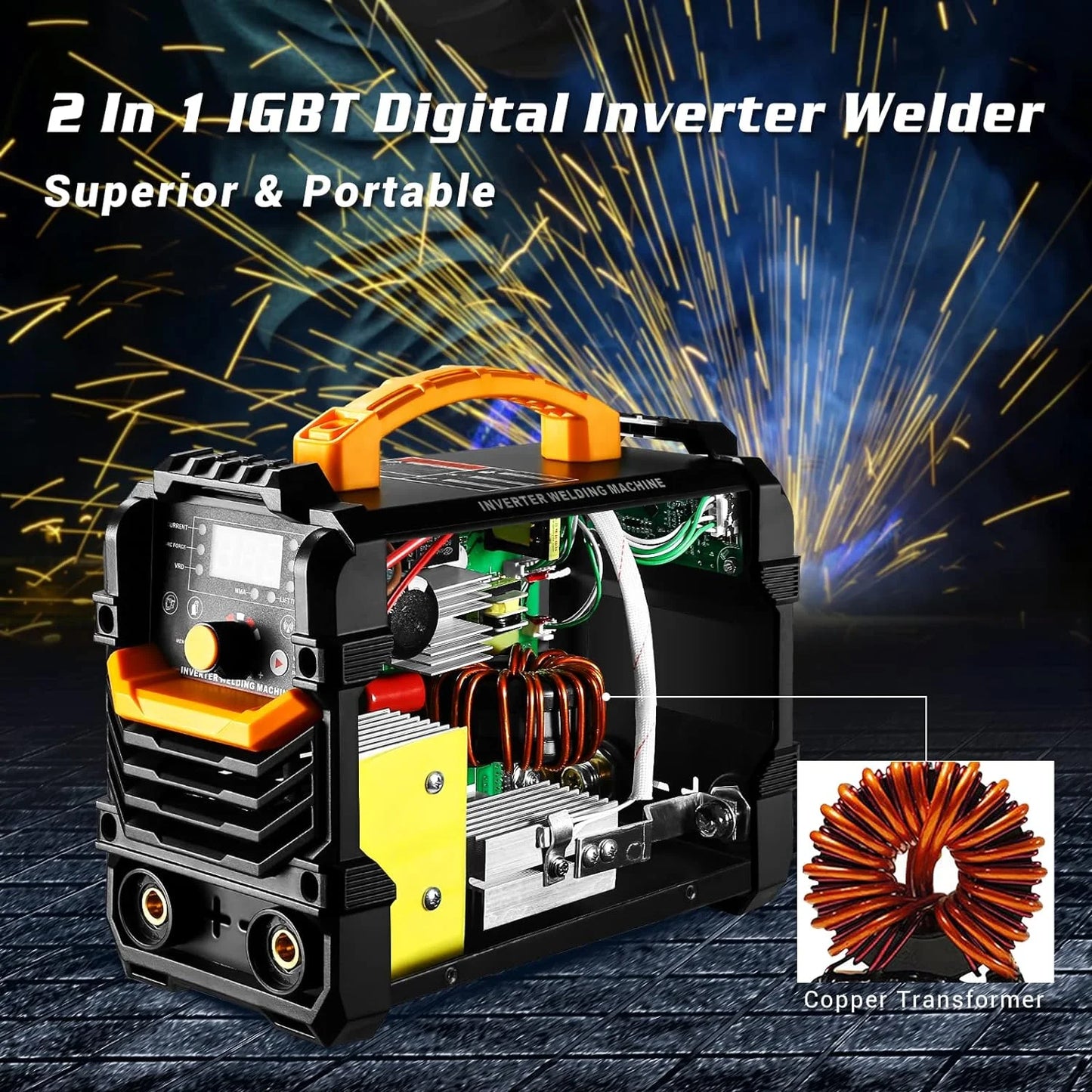

• Up-Graded MMA/Lift TIG Welder: Different from general welding machines, DEKO MMA/Lift TIG welders are not only equipped with advanced IGBT inverter design, but also optimized in terms of power, hot start, LCD, which can further improve the performance of welding machine(Lift TIG is optional, need buy extra tig lift torch,not included)

• Energy Efficiency: Stick welder delivers the stable current that can make the welder reduce the damage of copper and iron, increase the welding frequency, and optimize the energy efficiency

• Easy to use: Arc welder machine adopts automatic compensation for fluctuation, under-voltage protection, over-voltage protection, over current protection, and no electromagnetic noise mechanism that enables safe operation

• Portable Design: This welder features an easy carrying handle, compact light-weight design, easy for transportation and storage. Very convenient, can be used anywhere you need

• Multi-Use: The 2 in 1 MMA/Lift TIG welder is ideal for high TIG torch with stick arc welding, and very suitable for welding stainless steel, mild steel, aluminum, and other metal materials, perfect for professionals or DIY use

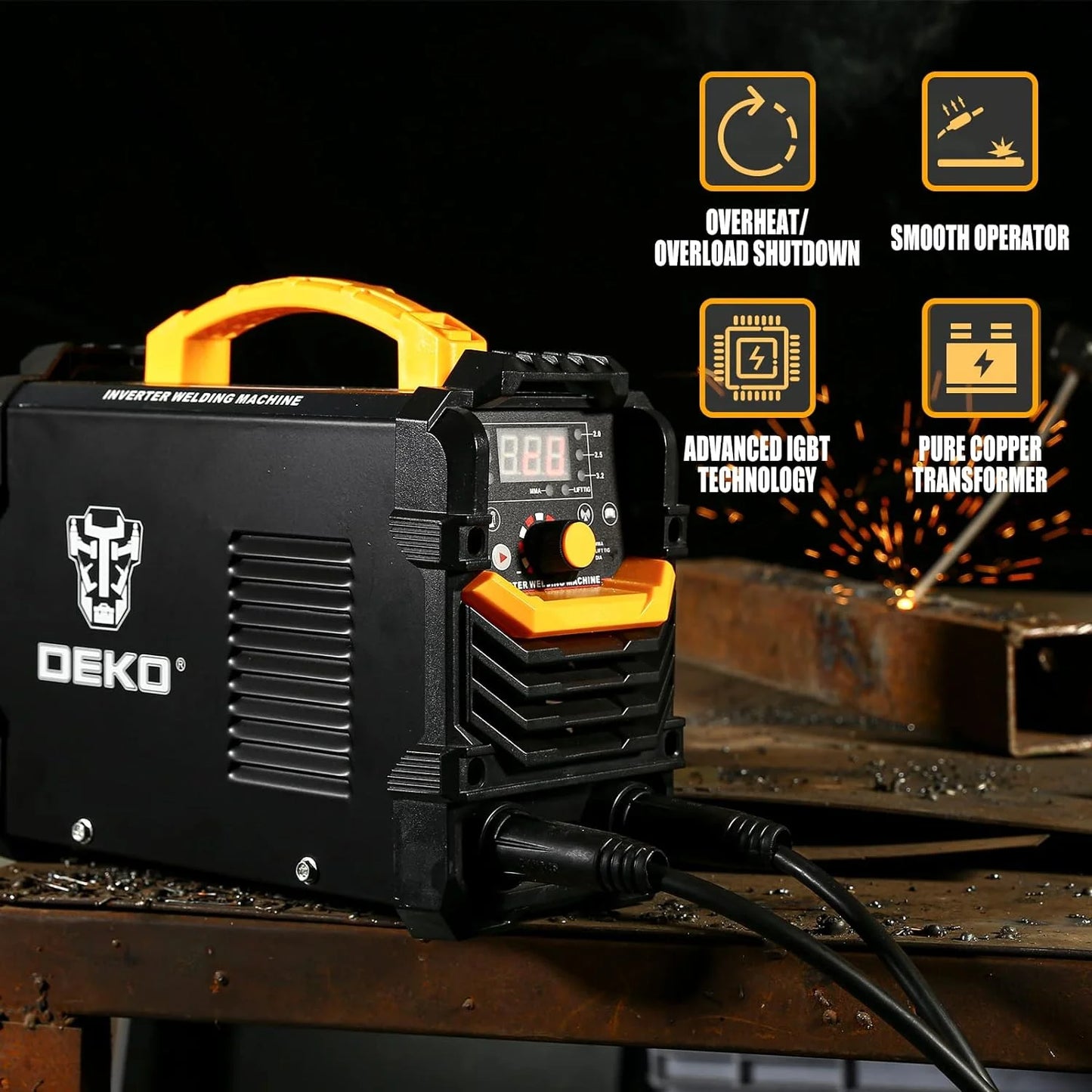

• Advanced IGBT Control Mode: Improves the reliability of welder

• Automatic Hot Start Design: Makes the arc sticking easier

• Anti-Stick Design: Easily remove the electrode from the workpiece

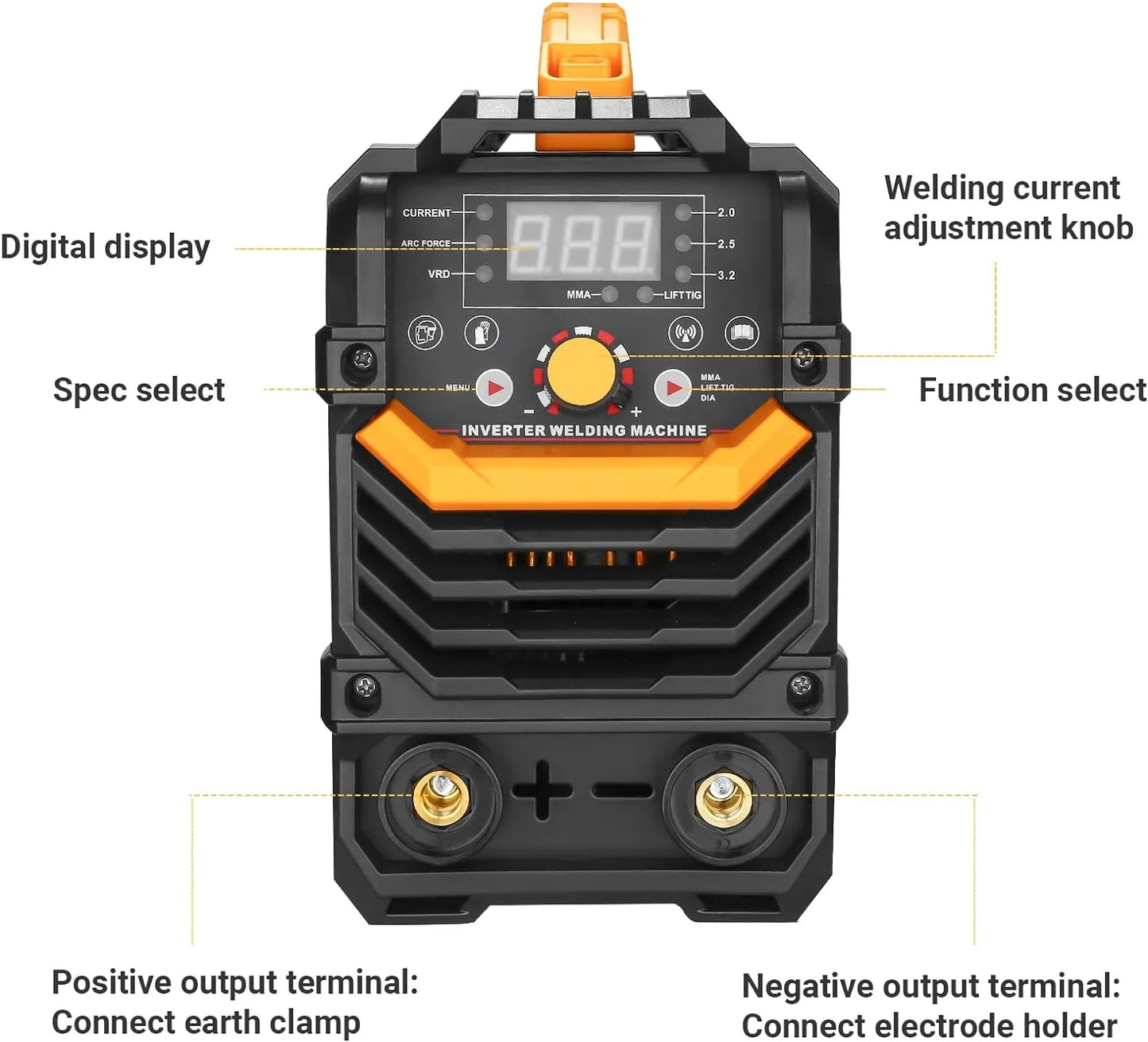

• Digital Display Panel: Read the output current easily

• Over heat protection: Ensures long-lasting usage

• Lightweight & Portable: Easy for transportation and storage

• 2 Functions in 1: Suitable for MMA, Lift Tig, perfect for mild steel works

• Lift TIG is optional(need buy extra tig lift torch,not included inside product)

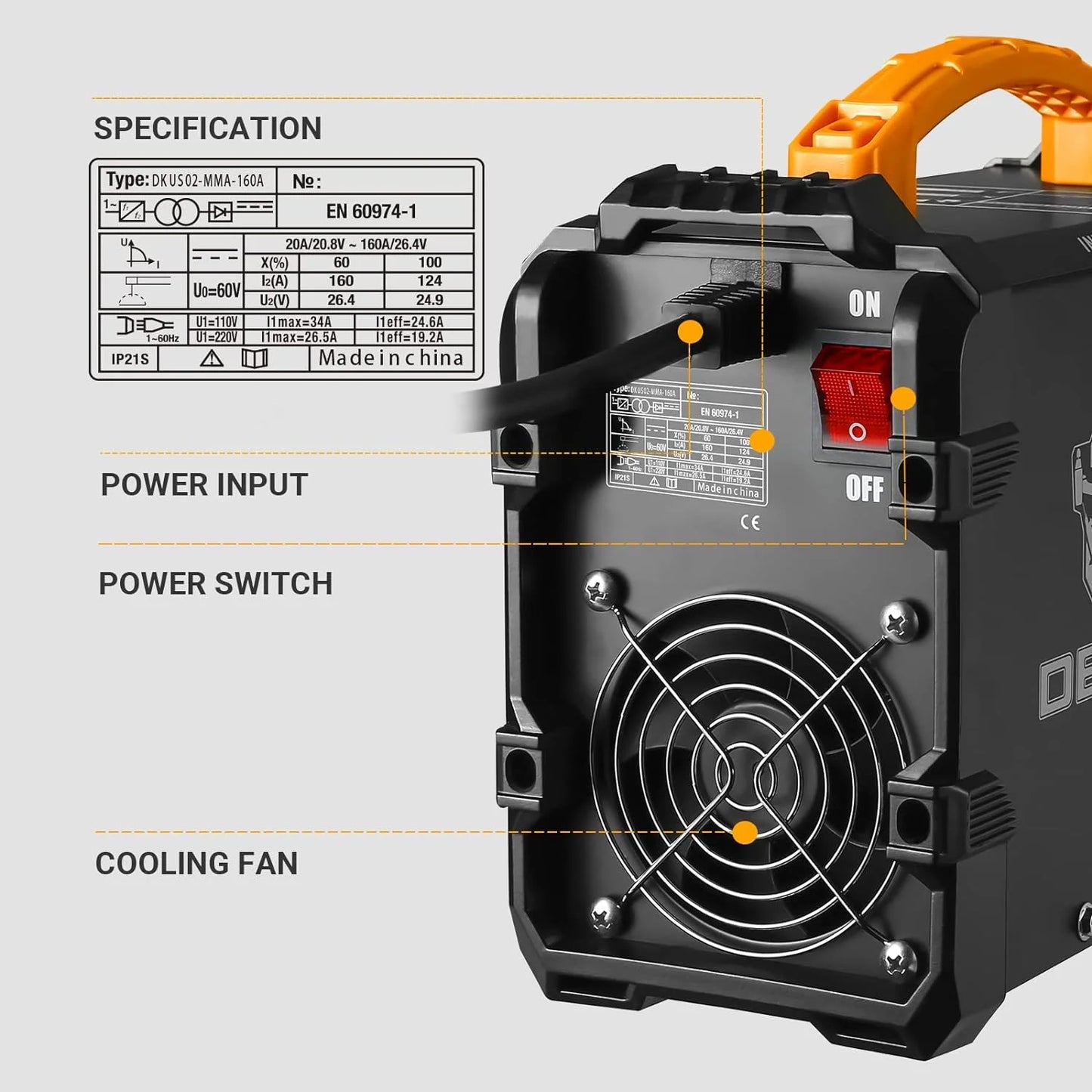

Product Specification

• Input Voltage: 110/220V

• Input Power: 110V(6.5KW)/220V(5.8KW)

• No-load Voltage: 60V

• Current Range: 110V(20-130A)/220V(20-160A)

• Rated Duty Cycle: 60%

• Electrode Diameter: Ø1.6-4mm

• Power Factor: 0.85

• Protection Degree: IP21S
