SPECIFICATION

Hign-concerned Chemical: None

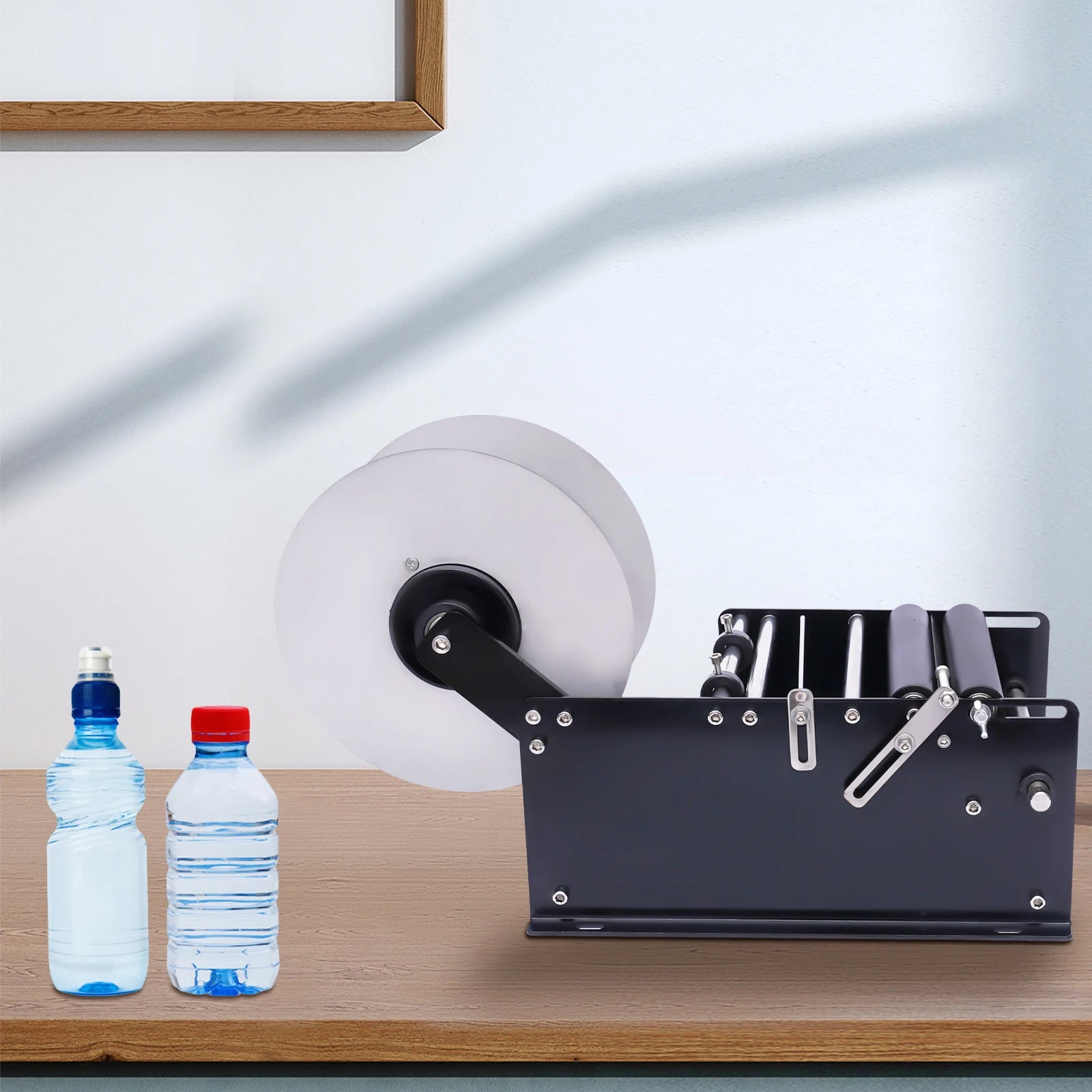

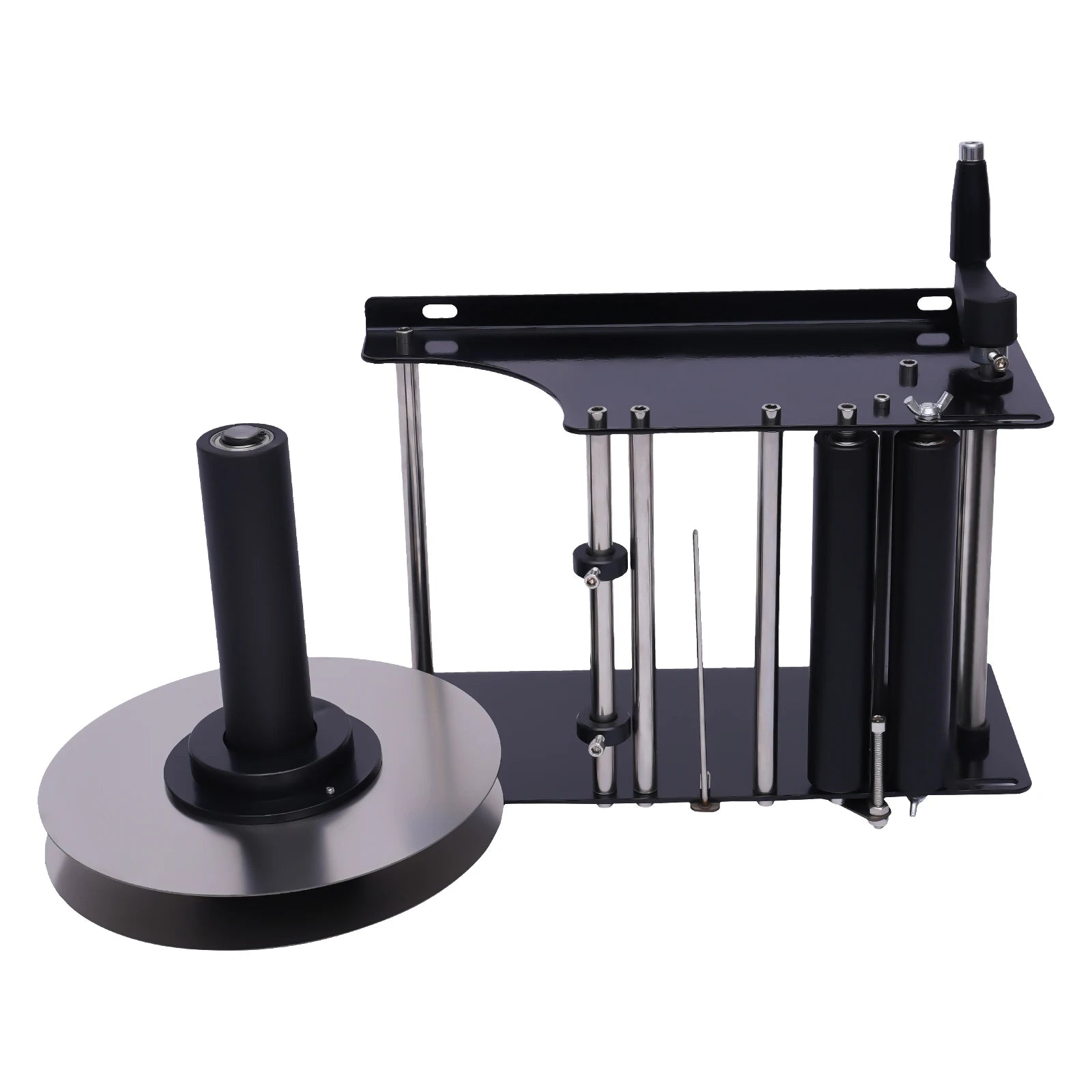

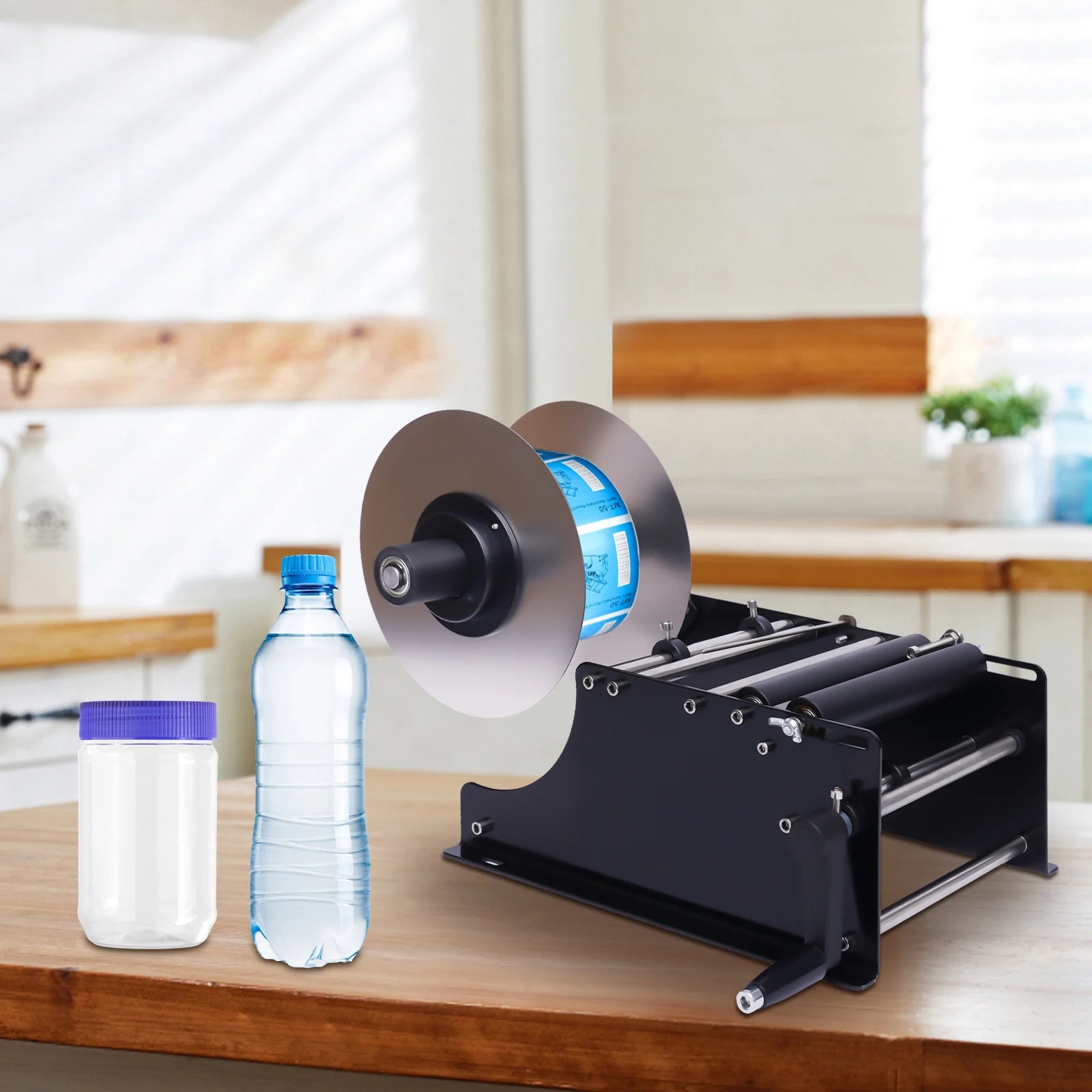

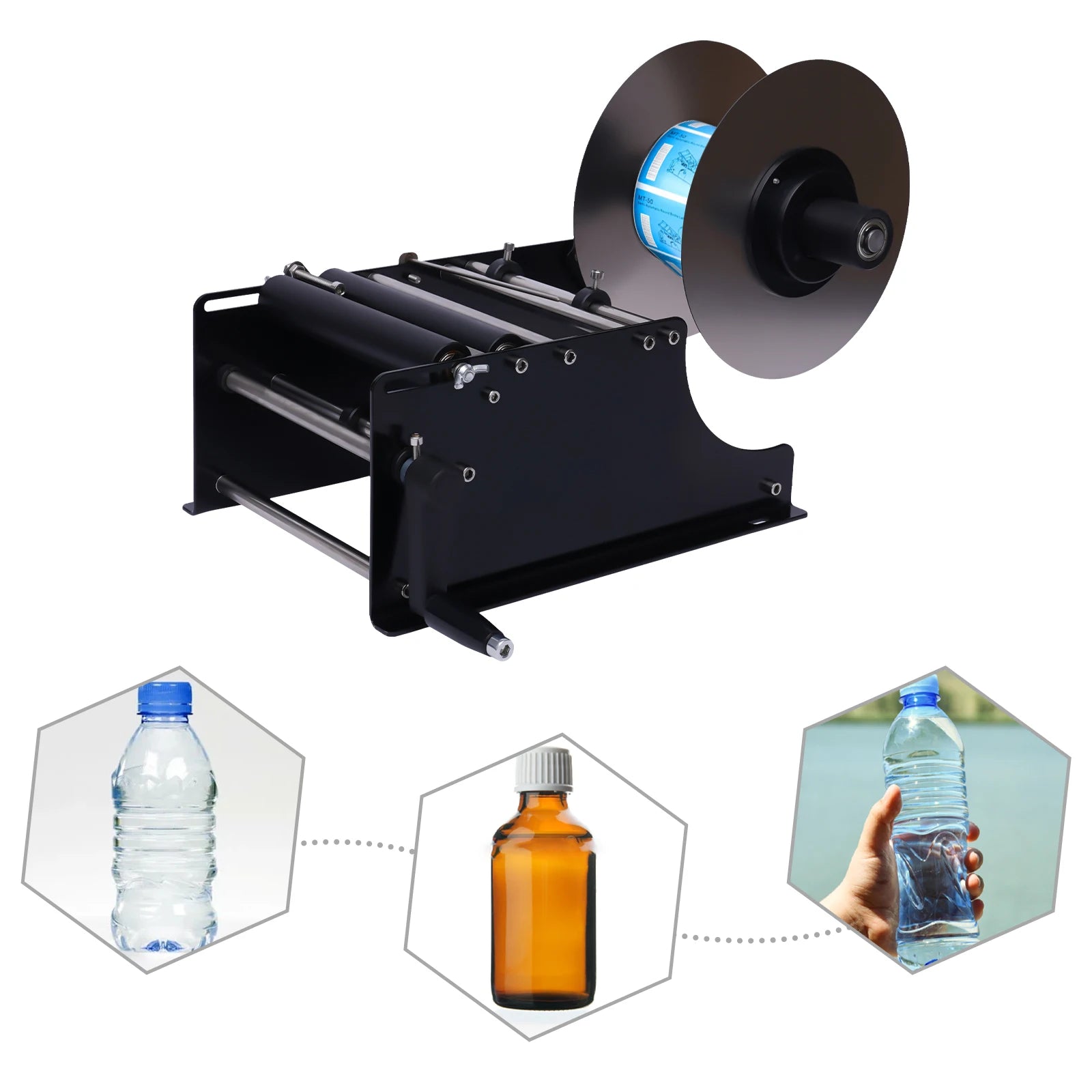

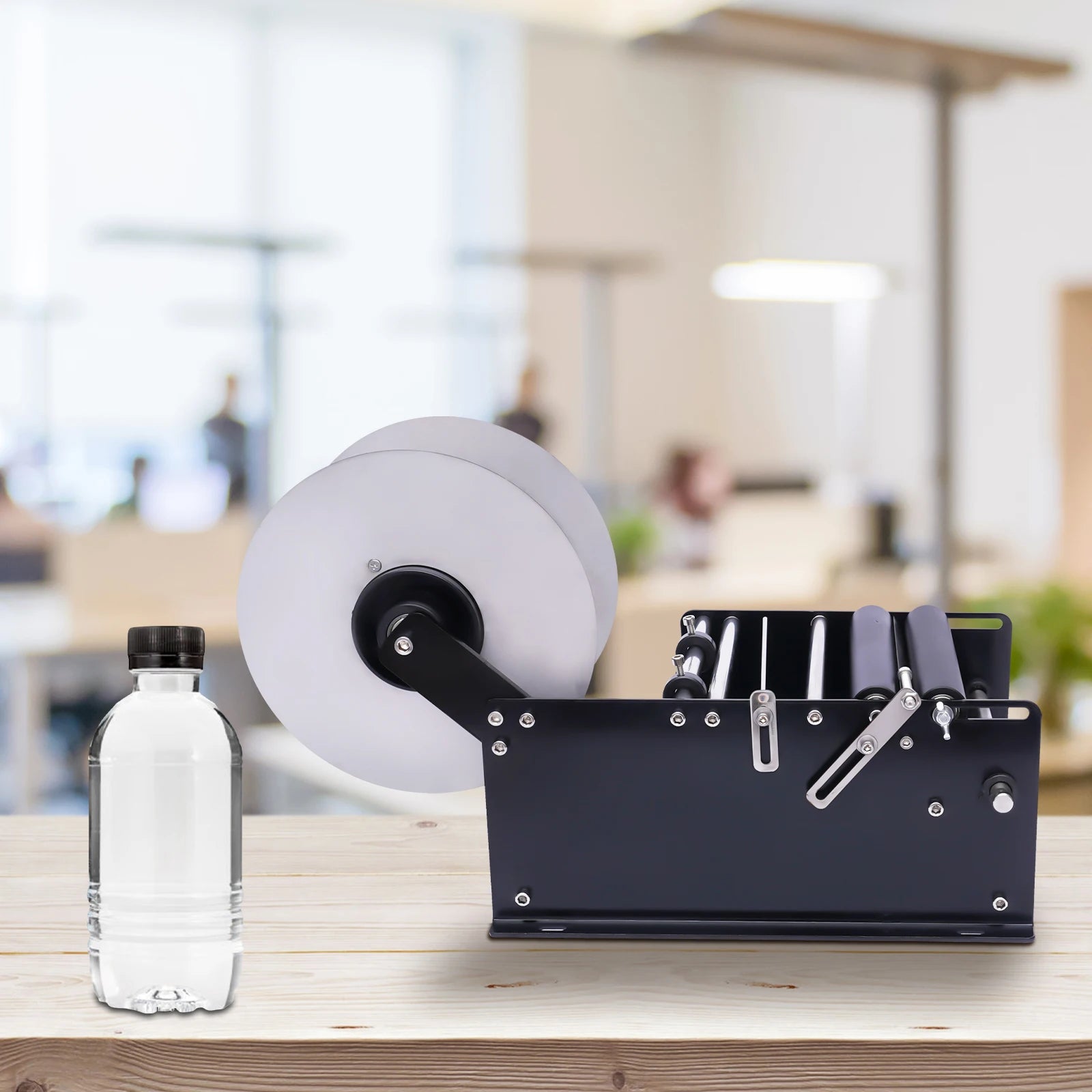

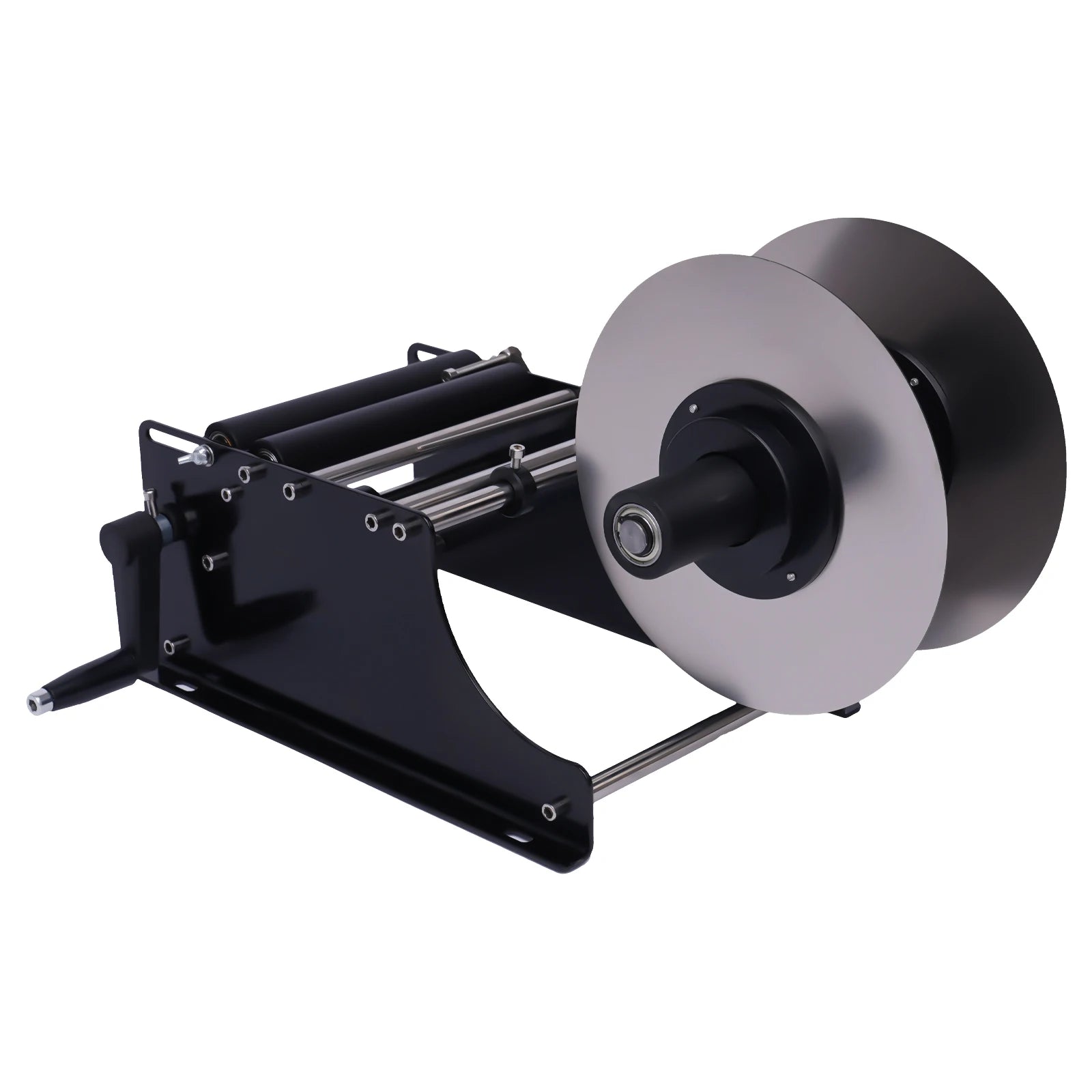

Manual Self Adhesive Labeling Machine Box/Bottle Labeling for Bottles Cans Mt-30 Round

Product Description:

This labeling machine is made of high-quality iron, which is strong, durable, and not easy to deform. The speed of this product is 10-30pcs/min, which is fast and can save you a lot of time. It has a labeling accuracy of ±0.5mm/0.01inch, which is high enough to make the label position of the product neatly organized.

Key Features:

Good Material——This product is made of high-quality iron and uses a high-temperature baking paint process to make it sturdy, durable, and not easy to deformation to extend its service life.

High Precision——It has a labeling accuracy of ±0.5mm/0.01inch, which is high enough to make the label position of the product neatly organized.

DIY at Will——You can use it to put any label you want on the bottle, including function labels, parameter labels, product labels, and so on. It can bring you a lot of fun.

Saving Space——It can be freestanding and can be mounted on a desktop. If you install it on the desktop, it will not take up any floor space and can save you a lot of space.

Specification:

Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: ±0.5mm/0.01inch
Suitable Bottle Diameter: 2-12cm（0.79in-4.72in）
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: ≥75mm/2.9inch
Laber Roll Out Diameter: ≤250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs
Package Size: 42*25*28cm/16*9.8*11.0inch

Package Included:

1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly

Installation:

1.Attach the label cartridge to the side of the machine with screws and nuts.
2.Attach the nut and the label cartridge with a silicone ring.
3.Fix the paper supply tray and the middle part with screws.
4.Insert the paper supply tray into the label cartridge.
5.Attach the hand joystick to the side of the machine with screws.
6.Attach the remaining part of the hand joystick.
7.The installation is complete.
