SPECIFICATIONS



Helmet Material: PA

Hign-concerned Chemical: None

Sensitivity: BY Setting

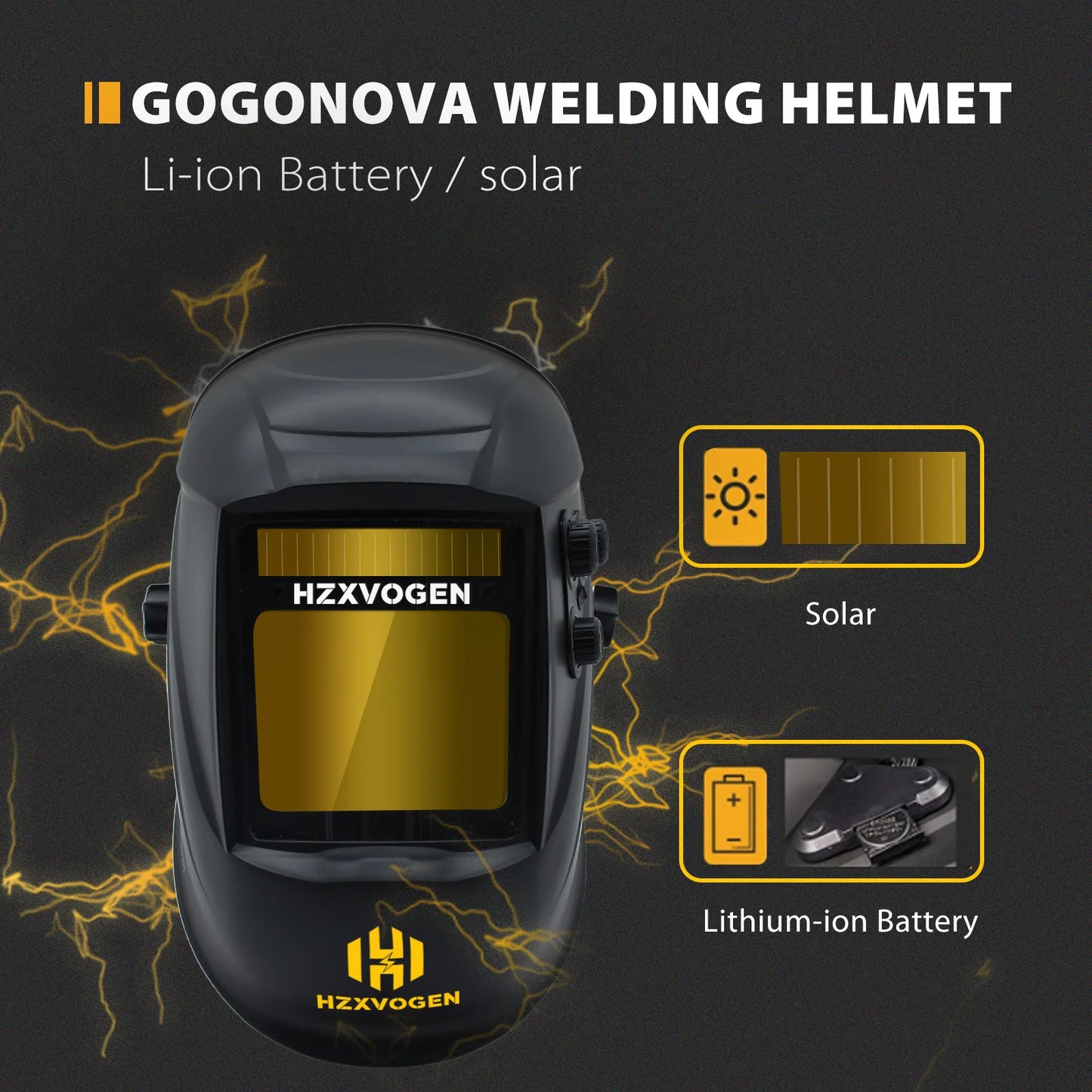

Power Supply: CR2450 Lithium battery & Solar supply

Auto-Darkening: YES

Certification: CE

Solar Powered: YES

Is Smart Device: no

View Area: 3.94*3.82

Switch Time: ≤1/10000S

Model Number: HV008

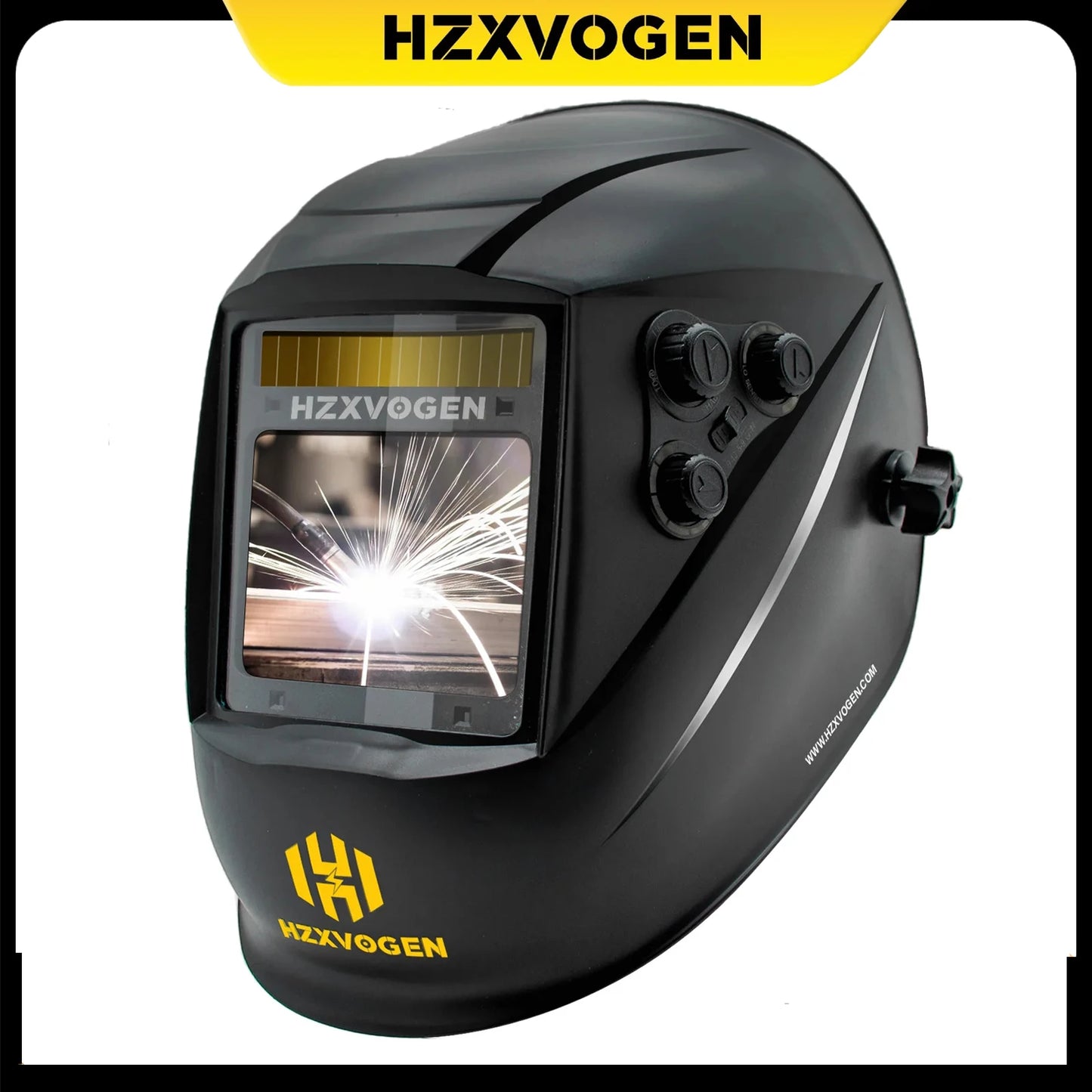

HZXVOGEN Auto Darkening Welding Helmet 100*97MM Large Viewing Welding Hood True Color Solar/Battery Powered Welder Mask

4 Arc Sensor Wide Adjustable Shade DIN 5-9/9-13 for SMAW, MIG, TIG, GTAW

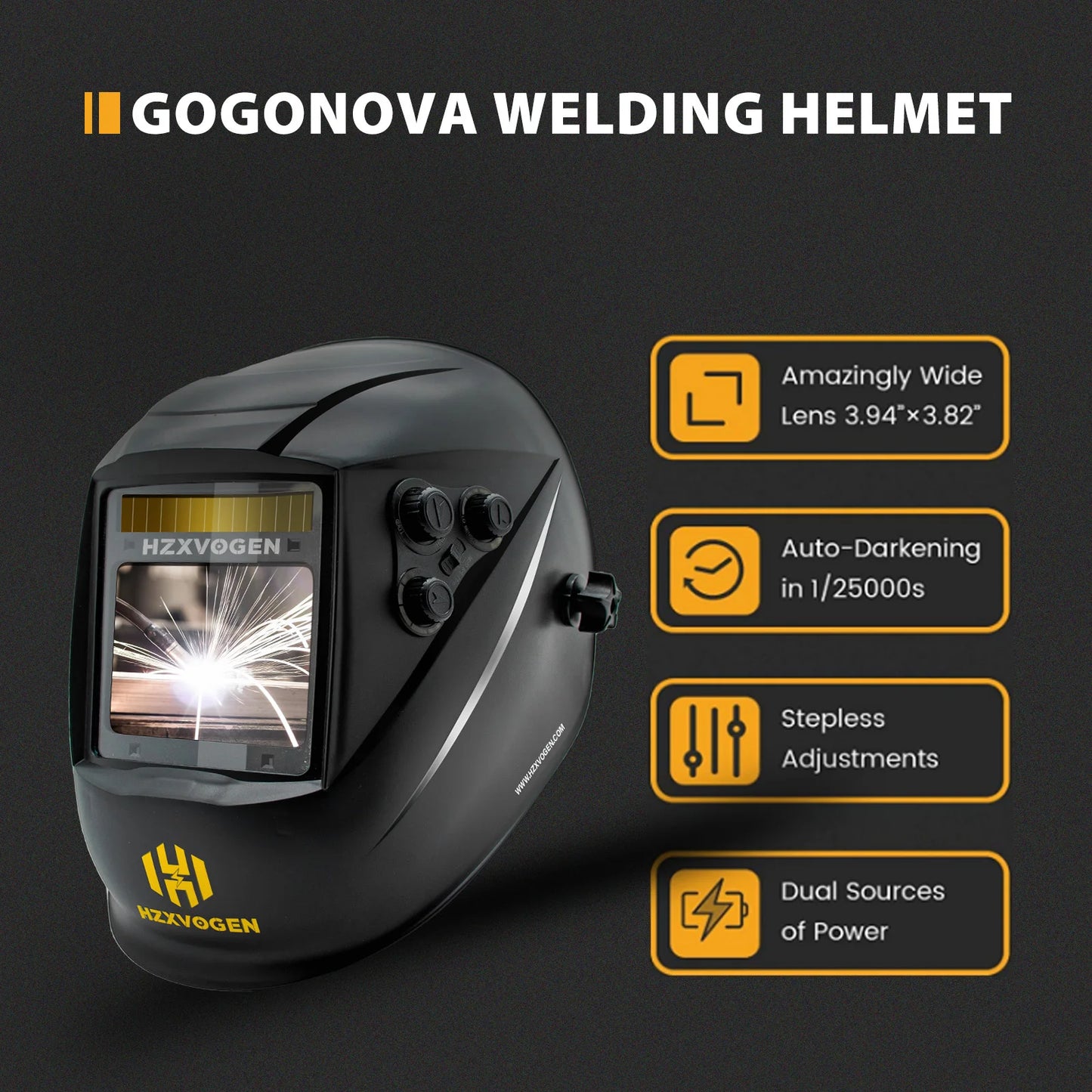

Features:

1. Large Viewing Screen - Amazingly widen lens only with HZXVOGEN today! 3.94”×3.82” (15 sq in) wide viewing powered by the updated True-Color technology restore every details of working conditions. This welding mask features 1/1/1/2 Optical Clarity. Improved visibility and reduced your eye strain.ide viewing powered by the updated True-Color technology restore every details of working conditions.



2. Smart Darkening Filter - 4 independent smart sensors provide auto-darkening function in millisecond. No matter what grinding or welding applications, like SMAW, MIG, TIG, GTAW, etc, HZXVOGEN welding hood is specially designed to resist 99% of harmful light and prevent your face from injury.

3. Customizability - In additional to sensors, it offers manual function to adjust both sensitivity and dark shade upon your need. DIN 4 on light state, and DIN 5-9/9-13 on dark state. Adding a rechargeable solar battery featuring automatic charging when welding.

4. Comfortable Headgear - Adjusting the tightness of headband by the knob and gear, making you feel more comfortable to wear. The inside of our welder mask is made of premium sponge, and the surface is covered with sweat-absorbing material, which is anti-slip and more breathable.

5. Safety & Long Life - This true color welding hood is made of high-quality PA materials, strong and durable, protecting you from injuring while cutting, welding, polishing, etc. Integrated built-in battery with solar panel ensures your smooth welding experience without power-of disruption.

Packing list:

Welding hood*1

Replacement lens*2

True Color technology enables you to not only see better, but also see more.

• Not like other helmets with a narrow window, the large viewing area with gives you a full range of vision in relation to the welding area, which enhances operator control.

• True Color widen lens, completely customizability and adjustable headgear.



Auto darkening filter's operation instruction:

• Dark shade: DIN5～DIN9/ DIN9～DIN13

Sensitivity:

1. When welding current is small, put the "sensitivity" knob to high place.

2. When welding current is large, put the “sensitivity” knob to low place.

3. Sensitivity is stepless control, set by hand according to actual situation.



Delay:

Delay time is time from dark to light , Stepless control.

1. When welding current is big and the light of molten pool is very strong, put the “delay”knob to high place. I

2. f you want to do spot welding, you need to put the “delay”knob to low place.

3. Adjust “delay”knob to middle place is suitable for most of welding mode.



MODE:

Change the place of the mode key, the function will change between “WELD”, “CUT” and “GRIND”.

1)TRUE COLOR:

• Now you can make a good view even better. Upgrading the welding helmet with True Color technology preserves the existing 1-1-1-2 optical clarity rating, ,improves visibility and reduces eye strain by minimizing the traditional lime green coloring in the helmet view screen.

2)ULTRA COMFORTABLE:

• Headgear with oversized comfort cushion provides extensive adjustability, settings, and improved support for better fit and comfort.

• Whole hood is design with light weight, has luxury and unique headgear, so you will wear it more comfortably

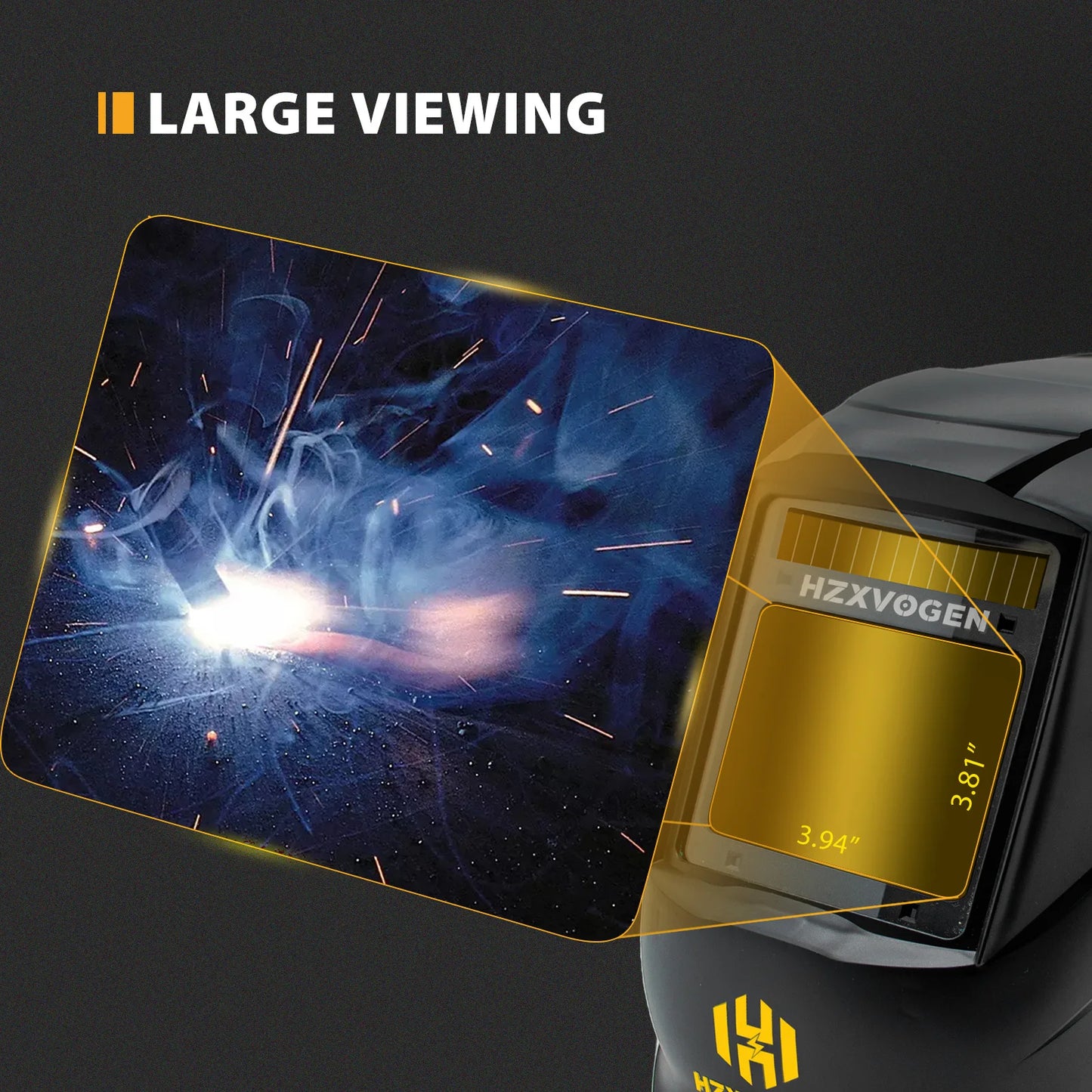

3)LARGER VIEWING AREA:

• The 3.94"x3.82’’ large viewing area gives you a full range of vision in relation to the welding area, which enhances operator control

• Great For TIG MIG MMA, Plasma Applications with Grinding Feature

• 4 Premium Sensors

• Superior comfort with the pivot style headgear

• Increased battery life

• Better clarity, True color view - 1/1/1/2 Optical Clarity
