**Before Purchase**
Before purchasing, please watch the instructional video to fully understand the installation and operation of the LCTX Tire Changer Machine
**IMPORTANT**
This product requires an air compressor with a minimum of 8 Bar pressure and a capacity of 8-10.5 gallons
**Please note that the air compressor is not included
After Purchase
After purchasing, it is essential to watch the installation and tire removal/installation guide videos.! Carefully read the User Guide to ensure proper and safe use of the machine
WORKING PRINCIPLE OF THE
LCTX TIRE CHANGER
The tire changer operates using
compressed air, which is connected from
the air compressor outlet to the tire
changer's air inlet. This activates the large
cylinder and foot pedal assembly. By
pressing the foot pedal, the cylinder rod of
the large cylinder extends and retracts.
When the cylinder retracts, it pulls the
bead breaker arm. The bead breaker arm,
in turn, pushes the push rod to rotate the
wheel Center securing and rotation
assembly
Maximum Wheel Diameter: 39 inches
Tire Size: 12-21 inches
Working Pressure: 6-8 bar
Weight: 132 lbs
Duck Head: Precisely angled and made from durable materials to prevent tire damage during operation.
Well-Designed Turntable: Cylinder-driven lever efficiently rotates the turntable, ensuring seamless tire changes.
Enlarged Cylinder: Designed for long-term use, delivering powerful performance with ease.

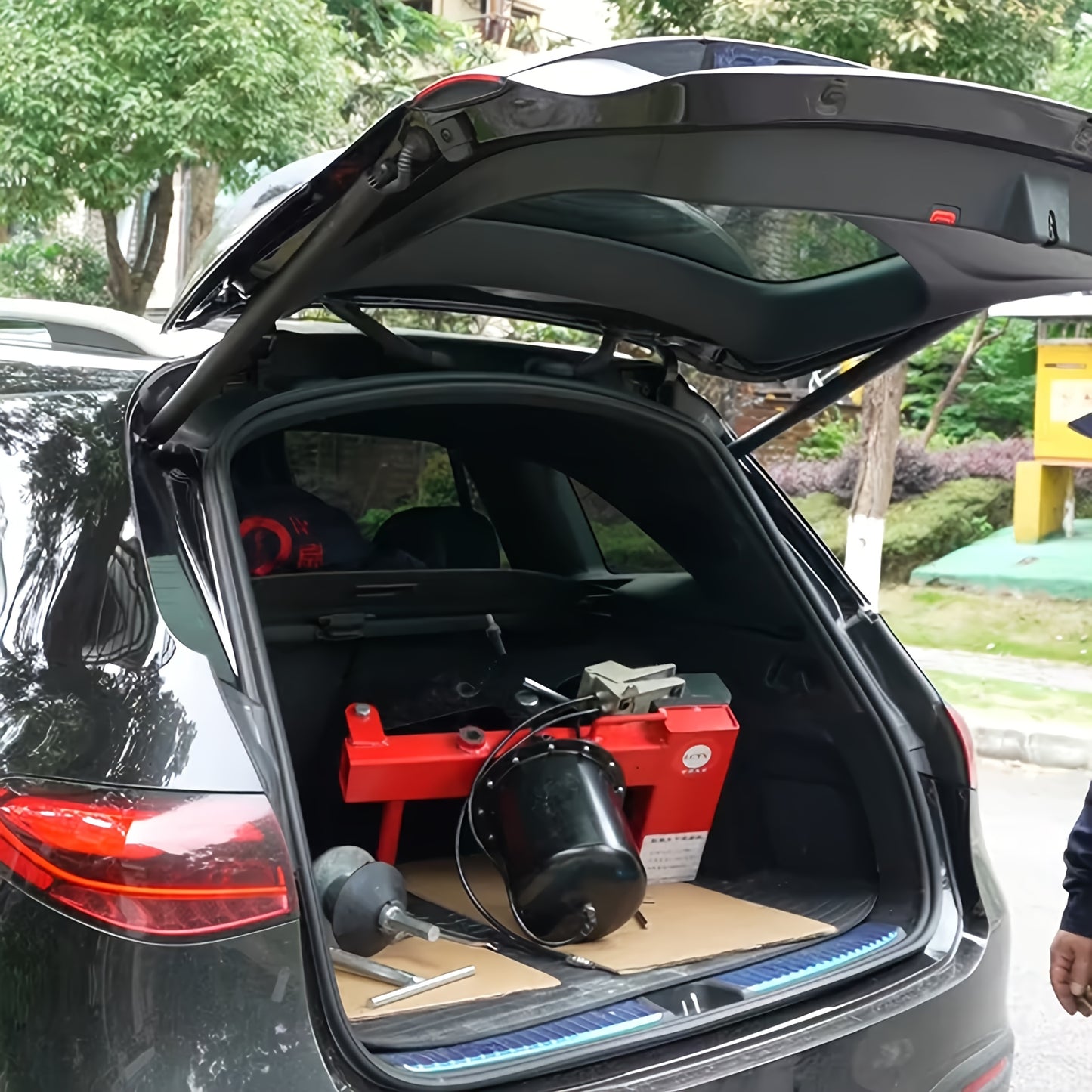

Versatile Applications: Ideal for road rescue, emergency maintenance, and mobile car repair
