SPECIFICATIONS

Hign-concerned Chemical: None

Model Number: TIG Welder Accessories

Certification: none

【Excellent Toughness】Welding torch accessories kit with excellent plasticity, toughness and crack resistance, especially low temperature impact toughness higher.

【Compatible With】The welding accessories kit is compatible with TIG WP-17/18/26 welding torch. Please make sure it fits your machine before purchase.

【Easy To Use】Electric conductivity similar with: 2% thoriated tungsten electrode at either AC or DC. It doesn’t need change any welding program.

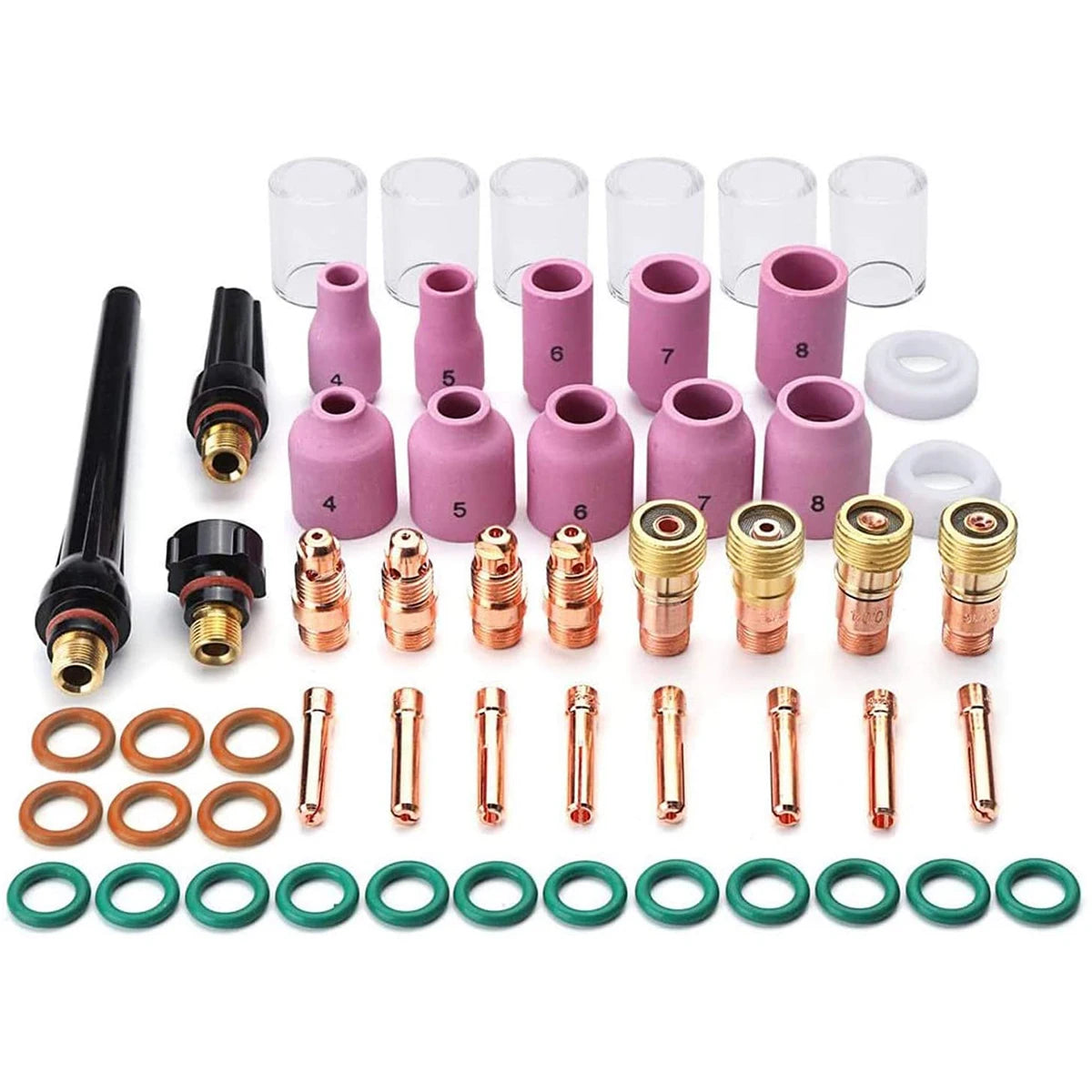

【Package Content】You will get 6pcs glass cups + 10pcs TIG alumina nozzles + 4pcs TIG stubby gas lens + 4pcs TIG gas lens collet bodies + 8pcs TIG collets + 3pcs TIG back cups + 18pcs temperature resistant O-rings + 2pcs cup gaskets.

【Wide Application】Welding torch accessories kit is suitable for a variety of locations of the pipeline TIG welding arc welding and arc welding, can be satisfied with the welding joints. It Can be welded carbon steel and some low alloy steel.

Specification:
Product name: Welding Torch Accessories
Compatible with: TIG WP-17/18/26
Material: Alumina
Color: multi-color
Nozzle size: 6.5mm (1/4”), 8.0mm (5/16”), 9.50mm (3/8”), 11.0mm (7/16”), 12.50mm(1/2”)
TIG stubby gas lens: 17CB20-1.0, 17CB20-1.6, 17CB20-2.4, 17CB20-3.2,
Collet body: 1.0mm (0.040”), 1.6mm (1/16”), 2.4mm (3/32”), 3.2mm (1/8”)
Collect: 1.0mm (0.040”), 1.6mm (1/16”), 2.4mm (3/32”), 3.2mm (1/8”)
Quantity: 55pcs

Note:
1. Please allow 1-3cm measuring deviation due to manual measurement.
2. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Package：（1set）

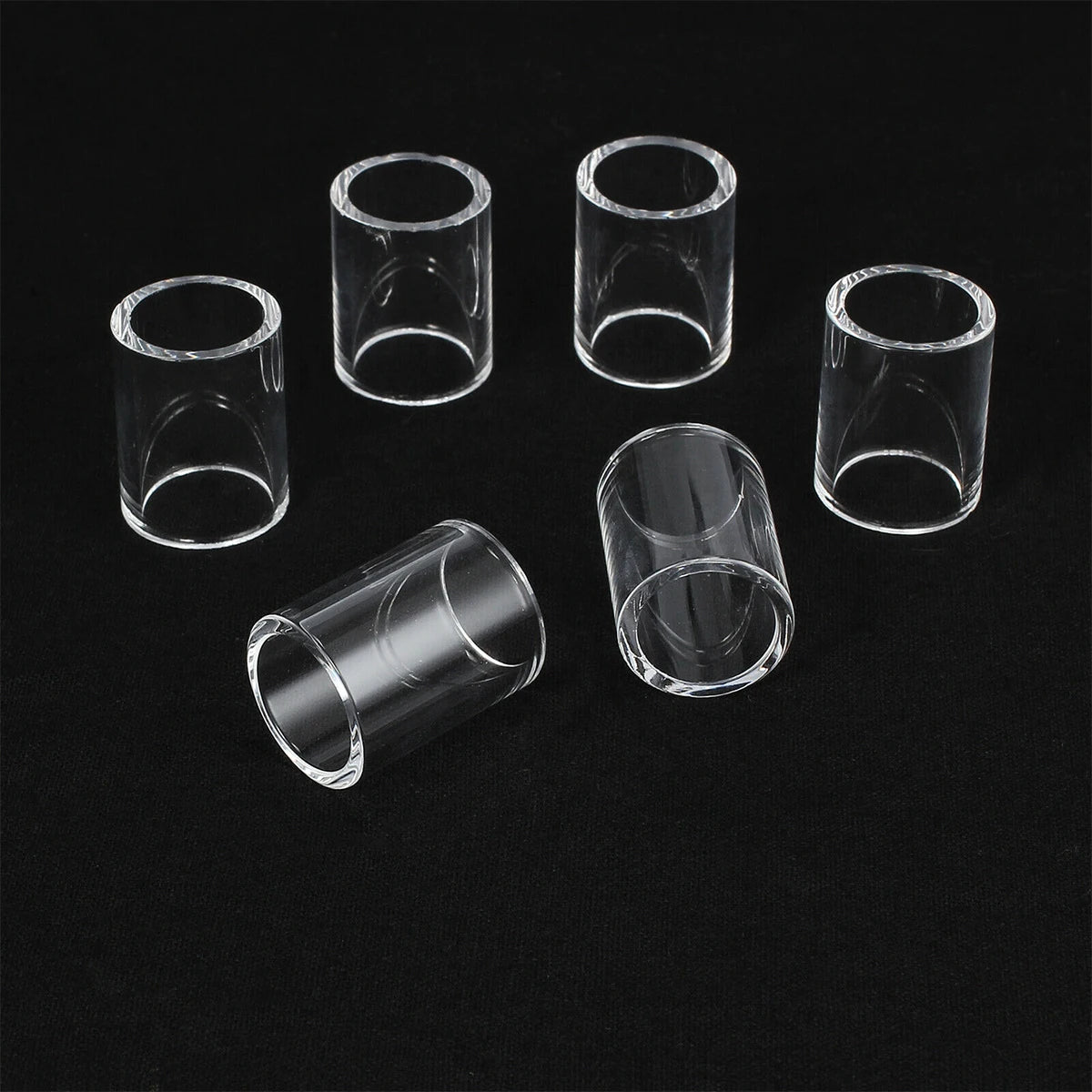

6x Glass Cup

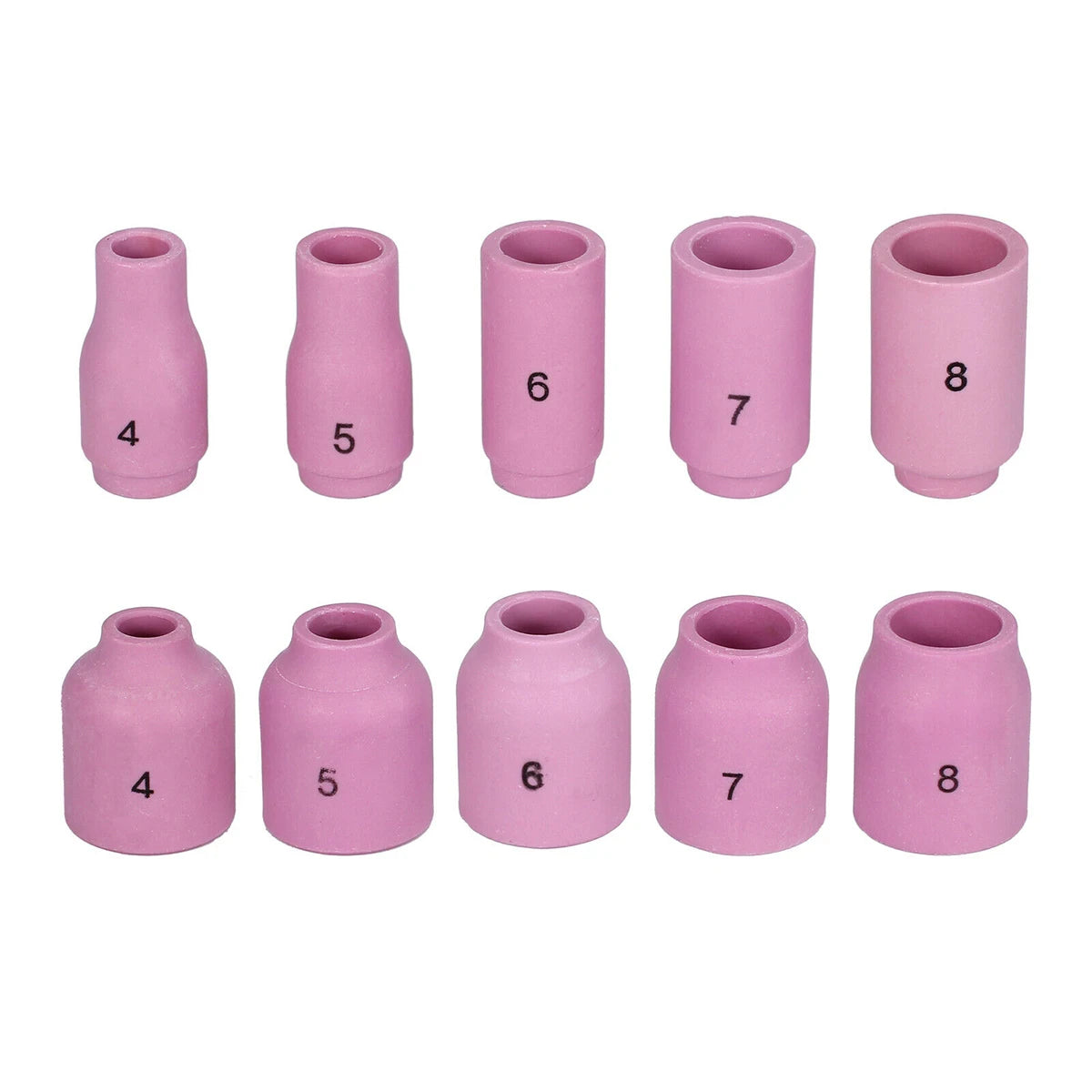

1x #4 13N08 Alumina Nozzle 6.5mm (1/4”)
1x #5 13N09 Alumina Nozzle 8.0mm (5/16”)
1x #6 13N10 Alumina Nozzle 9.50mm (3/8”)
1x #7 13N11 Alumina Nozzle 11.0mm (7/16”)
1x #8 13N12 Alumina Nozzle 12.50mm(1/2”)
1x #4 53N58 Alumina Nozzle 6.5mm (1/4”)
1x #5 53N59 Alumina Nozzle 8.0mm (5/16”)
1x #6 53N60 Alumina Nozzle 9.50mm (3/8”)
1x #7 53N61 Alumina Nozzle 11.0mm (7/16”)
1x #8 13N12 Alumina Nozzle 12.50mm(1/2”)
1x 17CB20-1.0 Stubby Gas Len
1x 17CB20-1.6 Stubby Gas Len
1x 17CB20-2.4 Stubby Gas Len
1x 17CB20-3.2 Stubby Gas Len

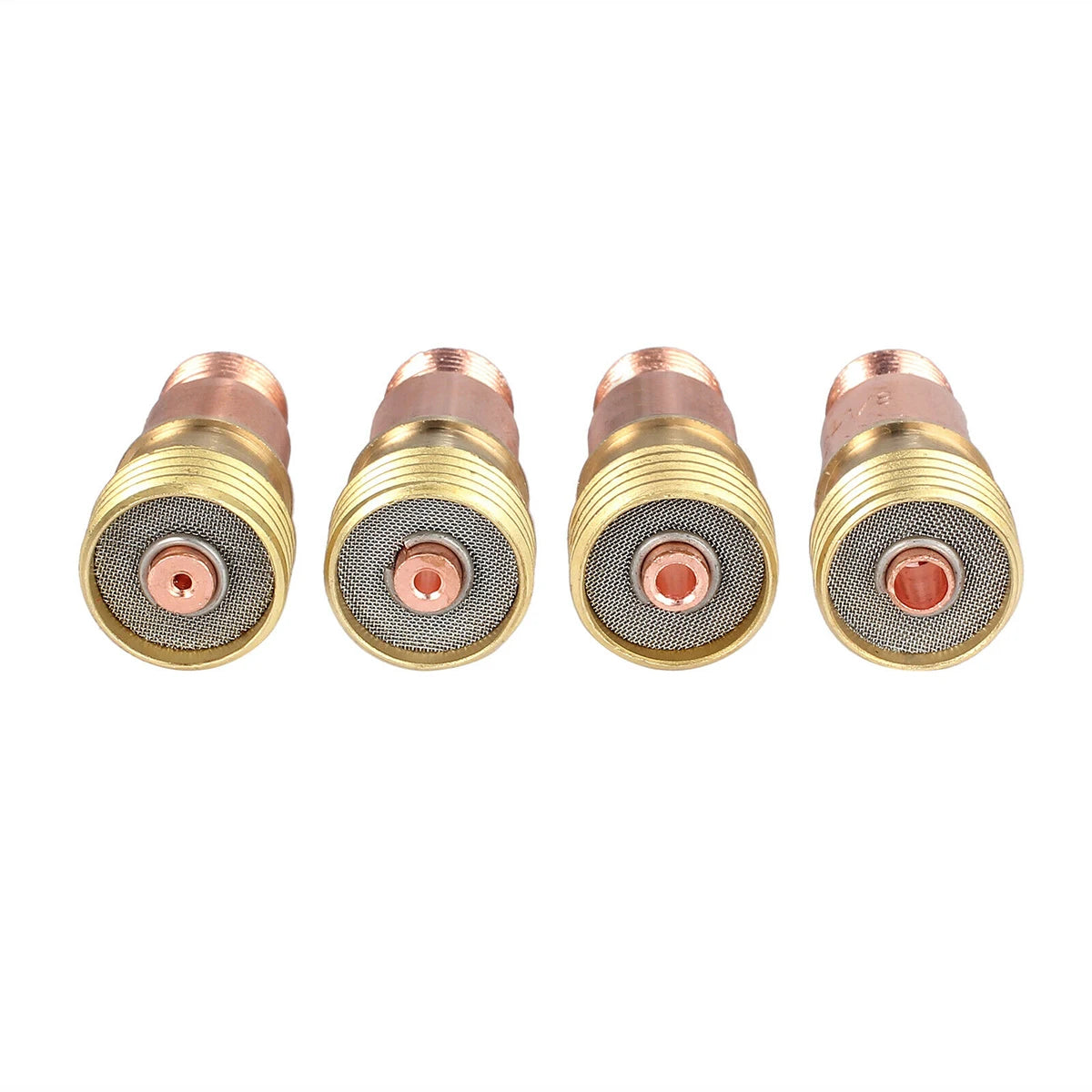

1x 17CB20G Gas Lens Collet Body 1.0mm (0.040”)
1x 17CB20G Gas Lens Collet Body 1.6mm (1/16”)
1x 17CB20G Gas Lens Collet Body 2.4mm (3/32”)
1x 17CB20G Gas Lens Collet Body 3.2mm (1/8”)

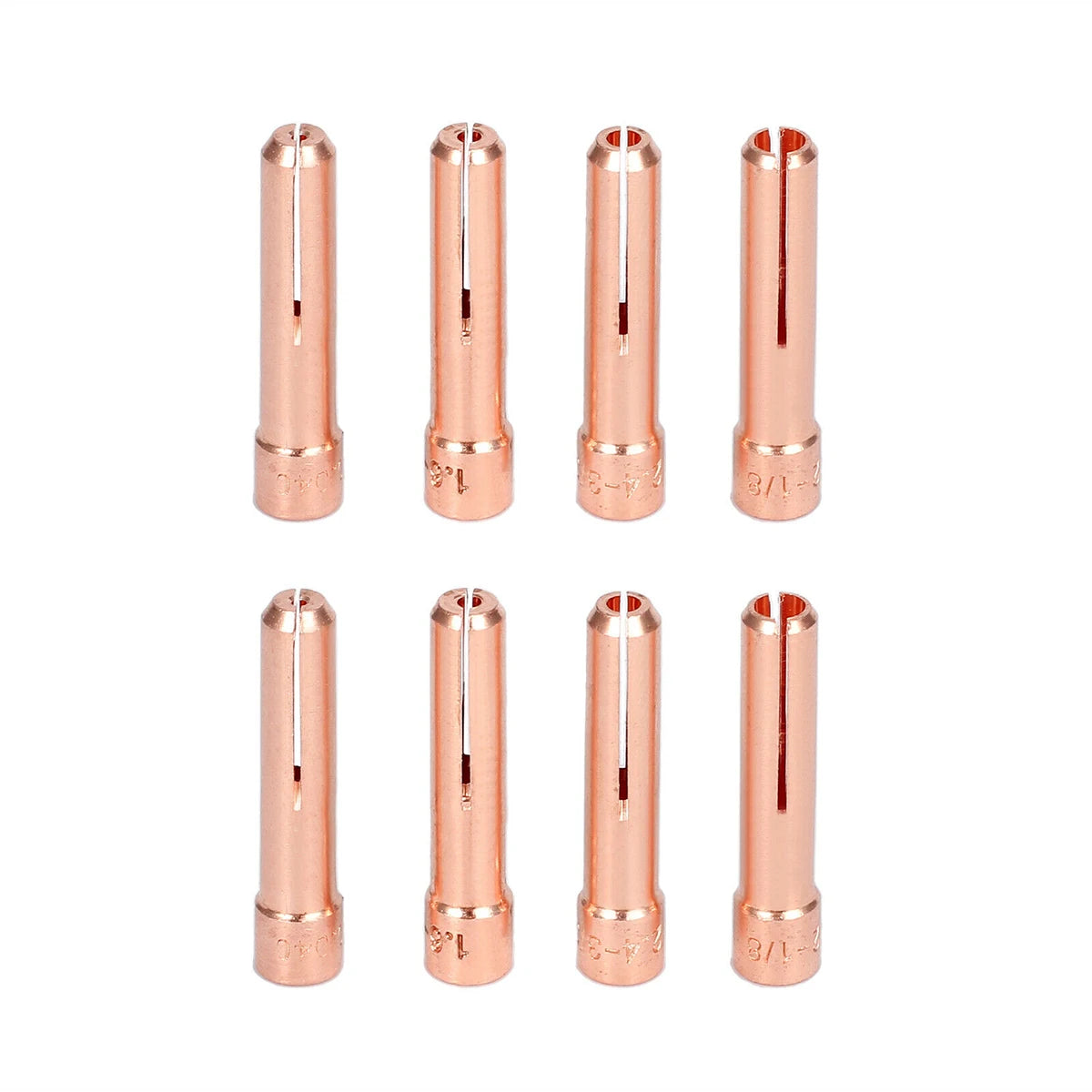

2x 10N22S Collet 1.0mm (0.040”)
2x 10N23S Collet 1.6mm (1/16”)
2x 10N24S Collet 2.4mm (3/32”)
2x 10N25S Collet 3.2mm (1/8”)

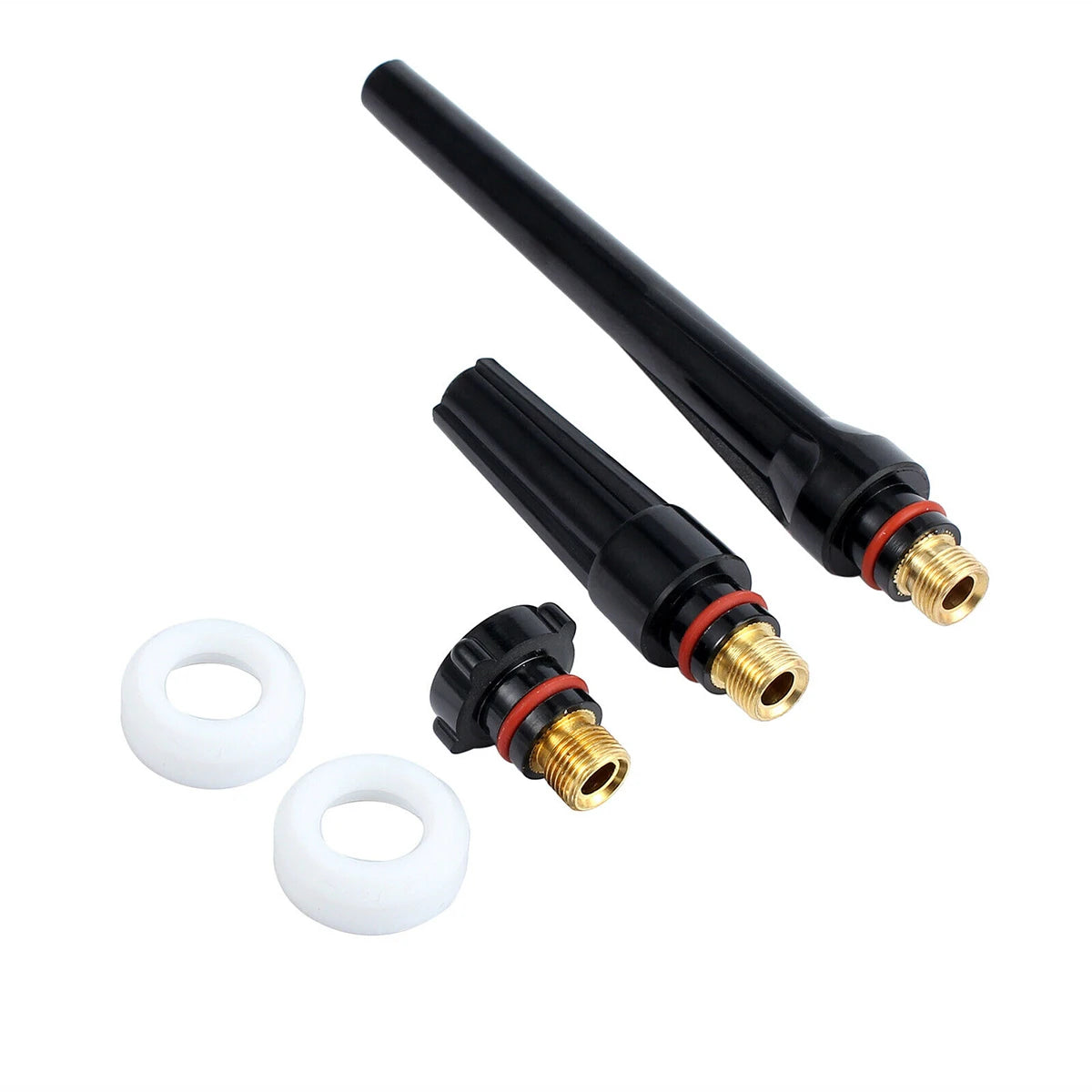

1x 57Y04 TIG Short Back Cup
1x 57Y03 Medium Back Cup
1x 57Y02 Long Back Cup
18x Temperature Resistant O-Rings1x 18CG-20 Cup Gasket
1x 18CGG Cup Gasket



TIG Welding Torch,High Temperature,Alumina, for TIG WP-17/18/26
