SPECIFICATIONS



Brand Name: HZXVOGEN



Hzxvogen Model: MIG250

Hign-concerned Chemical: None

Certification: CE

Weight: 12.5KG

Model Number: MIG250

Dimensions: 450*200*300mm

Wire Feeding Speed: 2-14m/min

Is Smart Device: no

Usage: Weld

Welding Wire diameter: 0.8/1.0mm

Applicable thickness: Over 0.8mm

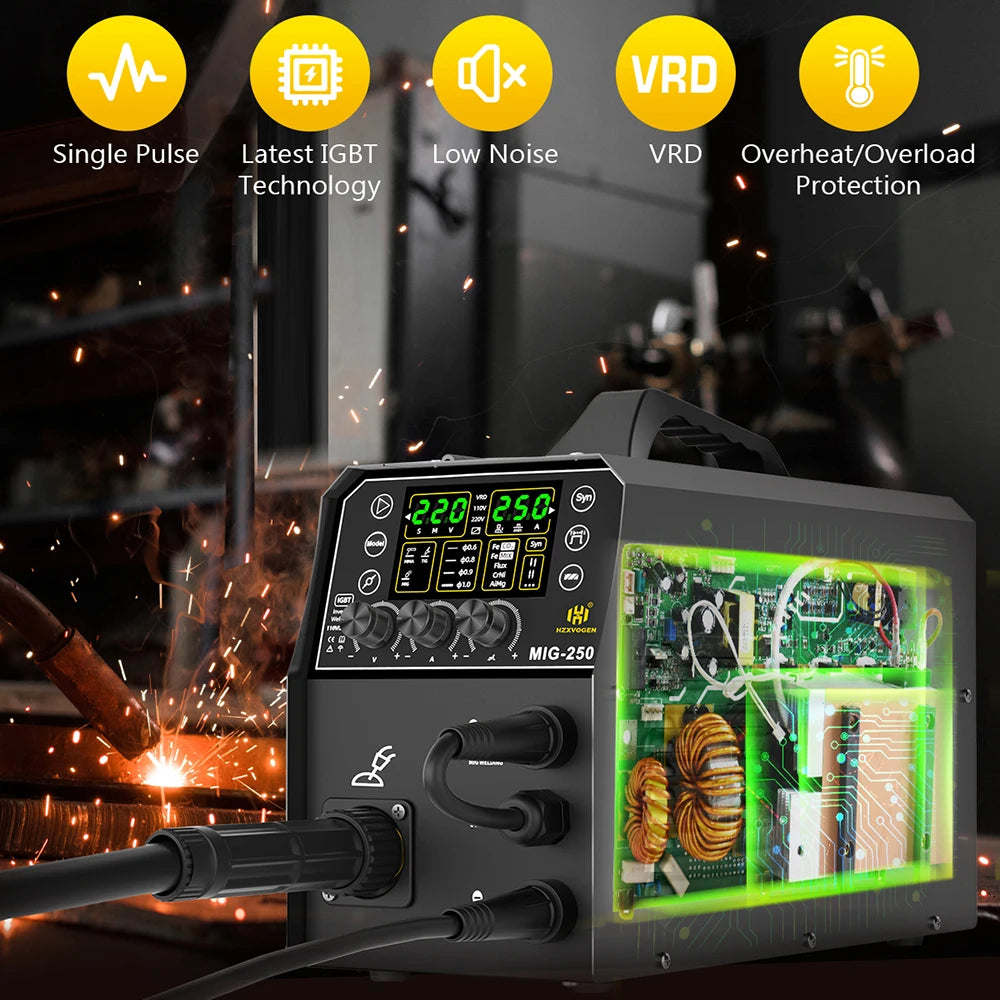

nverter technology: IGBT



Features:

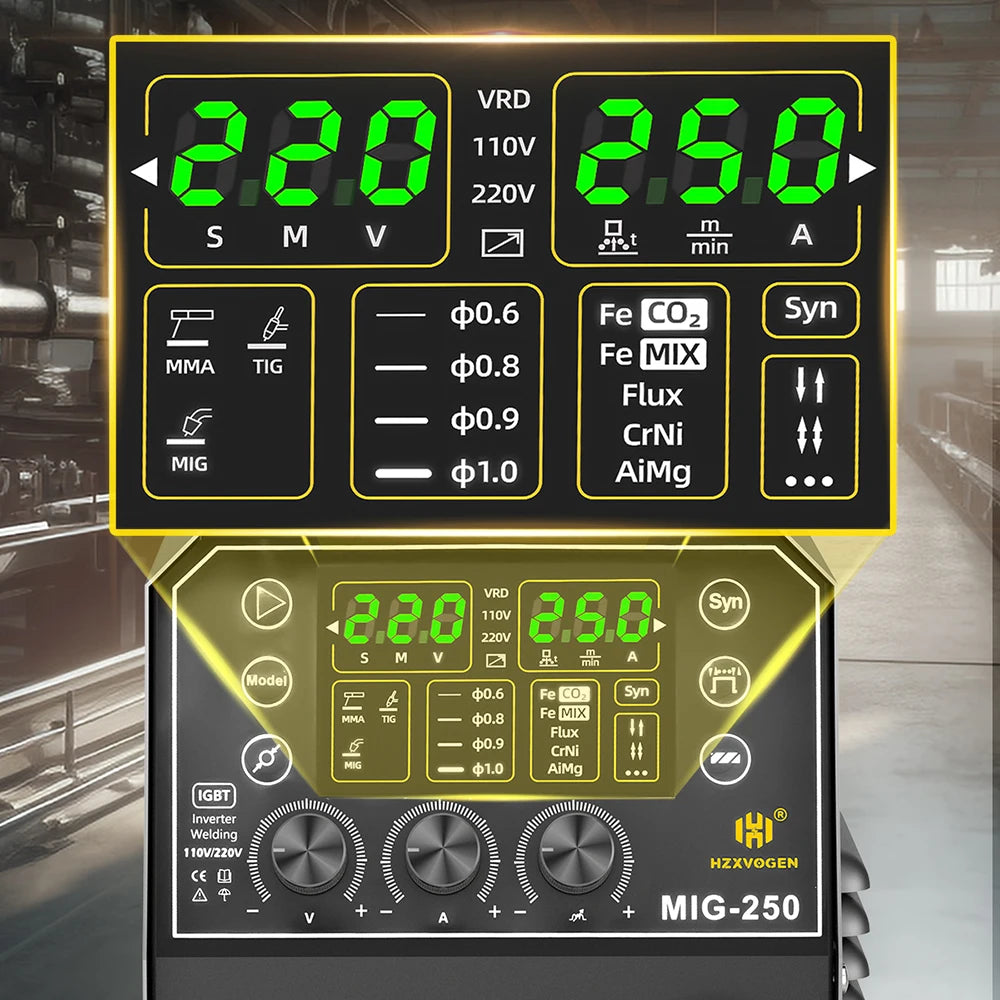

【Synergy All in One】: Support MIG GAS, MIG WITHOUT GAS LIFT TIG, MMA. Multi-function mode to start your welder's journey. MIG: 15-200A; MMA: 40-170A; TIG lifting: 30-250A. With the synergic function, these parameters can be pre-programmed according to the diameter of the wire and the combination of gas and metal type to facilitate welding and ensure optimal welding.



【WELD ALUMINUM】:This welder can weld aluminum, iron, carbon steel, stainless steel, etc. This mig welder came with qualify accessories: MB15 Mig Gun, graphite wire feed tube, earth clamp, electrode holder, welding brush/ hammer combo, hose clamps, gas tube and US plug. This welder features a easy carrying handle, compact design, easy for transportation and storage



【2T & 4T Functions】2T(Manual) / 4T(Semi-auto) switch is available, you can release your finger for long time welding job when on 4T. 2T is suitable for the re-tack welding, transient welding or thin plate welding. 4T is suitable for welding medium thickness plates.

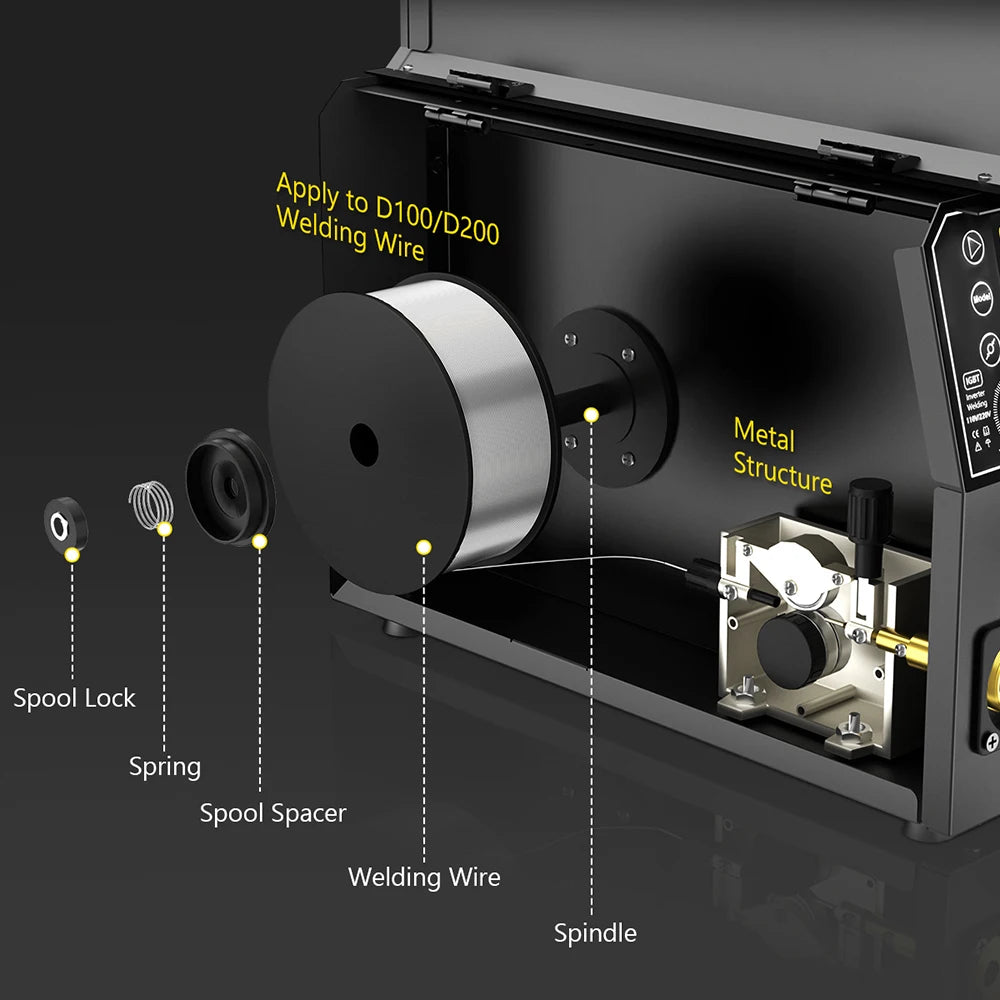

【Feeding Roller】: HZXVOGEN gasless flux cored wire welder has two wire feeding wheels 0.6/0.8 and 1.0/1.2. It can be matched with 1kg -5kg diameter 0.6/0.8/0.9/1.0 strong core welding wire. Suitable for φ2.5/3.2/4.0 acid electrodes (such as 6018/7013 electrodes). 2T/4T function supports long term welding.



【12-month warranty】: HZXVOGEN Electromechanical Welding Company promises a 12-month maintenance certificate. We will give you a quality service. We have professional maintenance agents in the European Union. If you are not satisfied or have any questions, please contact us as soon as possible.



Specifications:



Brand name: HZXVOGEN



Model:MIG250 NEW



power:AC230V±15% 50/60HZ



no-load voltage(V):64



Rated input current(A):200A



Output current range:10-200A



output voltage:16.5-23V



Process: gasless mig,Gas mig,lift tig,stick,mma



Welding Process:MIG



Item Type:MIG Welder



Voltage:110V/220V



Features: Gasless, With Gas



Welded Material:Stainless Steel



Warranty Period:1 Years

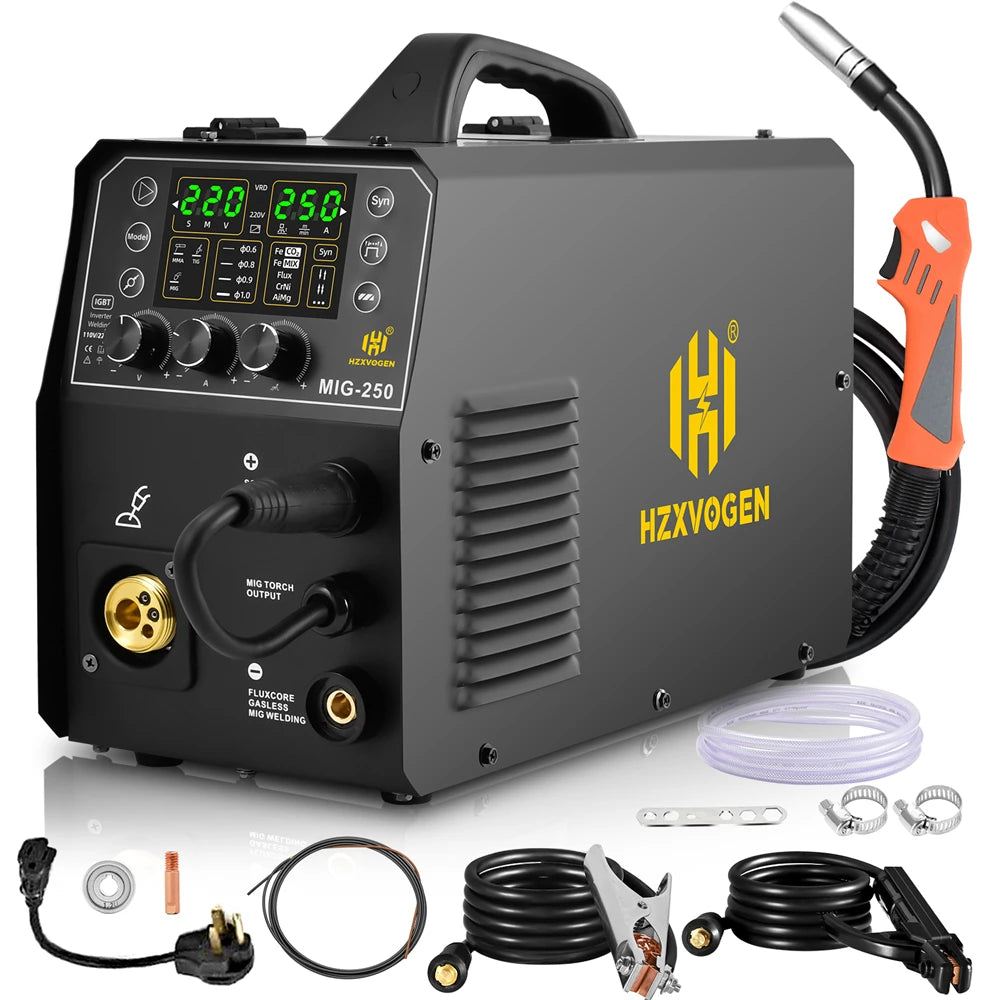

Package List:



1x MIG250II welder

1x MIG torch

1x Stick lead

1x ground lead

1x gas tube

1x graphite wire tube

1x wire wheel

1x 110v to 220v adaptor

2x hoop
